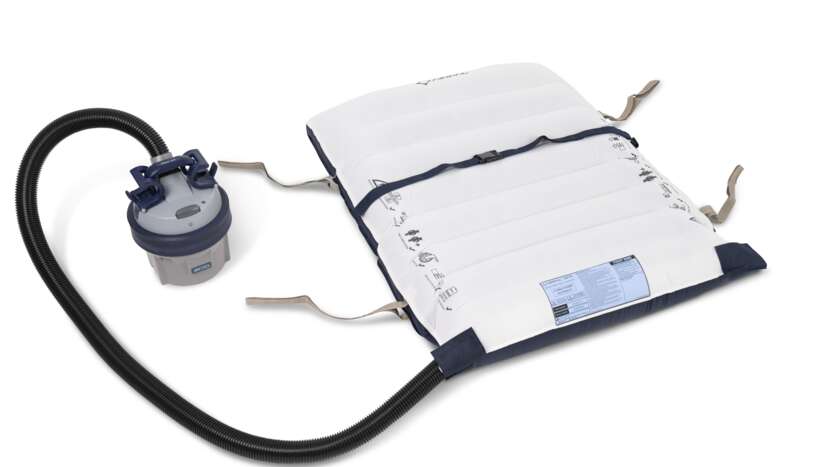

Airpal disposable transfer mattress

With the AirPal disposable transfer mattress, you can transfer patients from one surface to another and reposition within the bed safely, comfortably and efficiently.

AirPal supports the patient on a bed of air — an elevating effect created by air flowing through the perforated underside of the AirPal transfer mattress, lifting the patient away from the bed surface. - Safely Air Assisted Lateral Transfer devices significantly reduce both biomechanical demands and injury risk. - Comfortably Cushioning the patient on a bed of air, AirPal can help keep discomfort to a minimum. Demonstrated to significantly reduce physical demands on caregivers, AirPal ranks the most preferred air-assisted device in terms of both comfort and performance. - Efficiently In most cases AirPal requires only two caregivers to safely transfer a patient. And, because AirPal can be left under the patient, this saves time if another transfer is necessary. - Disposable for single patient use Reduce the risk of infection and lower the laundry burden. The AirPal disposable transfer mattress reduces the risk of cross contamination and can easily be disposed of if soiled, damaged or suspected of being contaminated. It does not need to be sent away for laundry; so there’s no need to worry about lost or damaged products.

COMPATIBLE AID Radiolucent and MRI compatible AirPal transfer mattress and extended hose, makes it useful during diagnostic procedures. SAFETY BELTS Two safety belts secure the patient onto AirPal during inflation and the transfer. HOSE ATTACHMENT Two hose attachment points with snap buttons in the foot end corners of the mattress. 2 PRODUCT LABELS 1. “Do NOT wash” label that dissolves when wet to reveal a “Do NOT use” symbol 2. Product care label including a feet symbol to indicate foot end HIGH SAFE WORKING LOAD AirPal is designed to move patients weighing up to 1,000 lbs (454 kg). WIDE RANGE AirPal is available in multiple widths, lengths and designs.

Product Information
Material	Non-woven top, nylon back (Latex-free)
Safe working load	454 kg / 1000 lb
Standard mattresses
AP-034N-DR	71 cm / 28 in
AP-039N-DR	86 cm / 34 in
AP-050N-DR	99 cm / 39 in
AP-050SPS width	127 cm / 50 in
Short mattresses
AP-034NSH-DR	86 cm / 34 in
AP-039NSH-DR	99 cm / 39 in
Air Supply
Diameter	178 mm / 7 in
Height	317,5 mm / 12 1/2 in
Weight	5 kg / 11 lb
Sound level	74 dBA
Motor 120 V*	120 VAC / 60Hz /1100W
Motor 230 V	230 VAC / 50Hz /1200W
*High efficiency air filter kit available for 120 V motor	.
Accessories
Transport cart	.
MCA0003 Height	93cm / 36 19/32 in
Lenght	62cm / 24 13/32 in
Width	54,5cm / 21 1/2 in
Weight	11,5 kg / 25,4lb
Extended Air hose	.
8664411 Length	193 cm / 76 in
Width	117cm / 46 in
