Airpal launderable transfer mattress

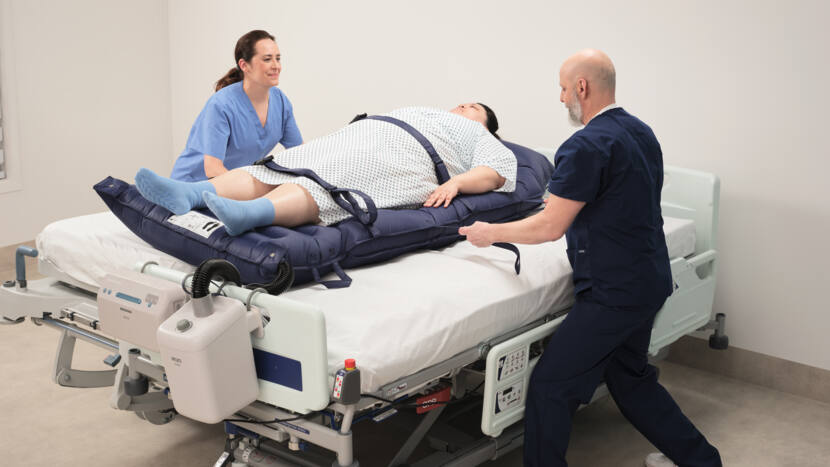

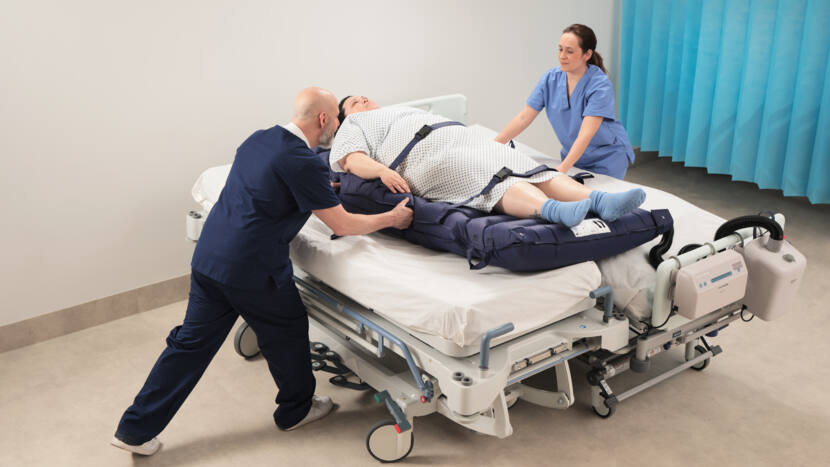

The AirPal® patient transfer system harnesses air’s invisible force to lighten the load of care – using a controlled airflow to help you reposition patients safely, comfortably and efficiently.

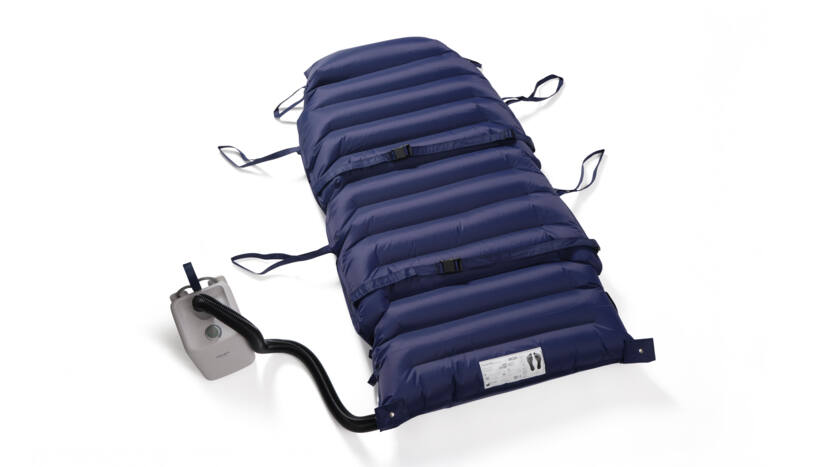

AirPal supports the patient on a soft cushion of air – an almost cradling sensation created as air flows through the underside of the transfer mattress, gently lifting the patient away from the bed surface.

- Safely
Air Assisted Lateral Transfer devices significantly reduce both biomechanical demands and injury risk.¹

- Comfortably
Cushioning the patient on a bed of air, AirPal can help keep discomfort to a minimum. Demonstrated to significantly reduce physical demands on caregivers, AirPal ranks the most preferred air-assisted device in terms of both comfort and performance.²

- Efficiently
In most cases AirPal requires only two caregivers to safely transfer a patient.

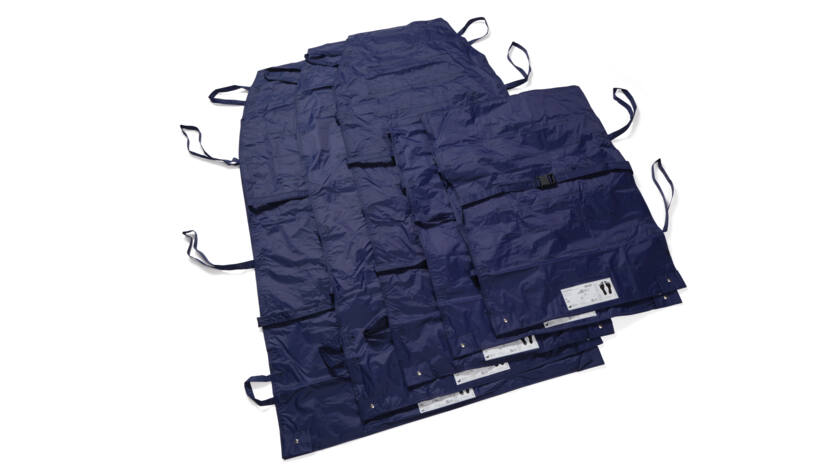

- Launderable for multiple reuse
The AirPal launderable transfer mattress is made of a durable nylon fabric. It can be wipe cleaned or laundered at 70°C (158°F) making it a sustainable and cost-effective alternative to disposable mattresses because of the longer product life cycle.

1. Baptiste A, et al. (April 2006) “Friction-Reducing Devices for Lateral Patient Transfers: A Clinical
Evaluation”. Article in AAOHN Journal. DOI: 10.1177/216507990605400407. Source: PubMed.
2. Costello, K. An evaluation of lateral patient transfer devices; caregiver ergonomics, 2021

- Diagnostics ready
Radiolucent and MRI compatible AirPal transfer mattress and extended hose, makes it useful during diagnostic procedures.

- Safety belts
Two safety belts secure the patient onto AirPal during inflation and the transfer.

- Ergonomic pull handles
Longer handles to support ergonomic postures.

- High safe working load
AirPal is designed to move patients weighing up to 544 kg (1 200 lb).

- Wide range
AirPal is available in multiple widths, lengths and designs.

- Two cleaning options
Laundered at 70°C (158°F) or wiped with one of the following cleaning agents:
• Sodium or calcium hypochlorite
• Isopropyl alcohol
• Quaternary ammonium compound

Product Information
Material	Nylon
Safe working load kg	544 kg / 1200 lb
Washing Temperature	70 °C / 158°F
Tumble Dry Temperature	max 60°C / max 140°F
Standard mattresses Length 198 cm / 78 inches
AP-034N Width	86 cm / 34 in
AP-039N Width	99 cm / 39 in
AP-050N Width	127 cm / 50 in
Short mattresses Length 119 cm / 47 in
AP-034NSH Width	86 cm / 34 in
AP-039NSH Width	99 cm / 39 in
Air Supply
Overall standard height	420 mm / 16 17/32 in
Overall height w/o hose	320 mm / 12 19/32 in
Overall width	200 mm / 7 7/8 in
Overall length	240 mm / 9 29/64 in
Weight 230V	5.85 kg / 12.89 lbs
Weight 120V	5.5 kg / 12.19 lbs
Air hose – stretchable min/max	850 / 2000 mm / 33 15/32 / 78 47/64 in
Air filter	HEPA H13 grade air filter
Motor 230 V	230 VAC / 50 Hz / 1200 W
Motor 120 V	120 VAC / 60 Hz / 1100 W
Accessories
Transport cart	.
MCA0003 height	93 cm / 36 19/32 in
MCA0003 length	62 cm / 24 13/32 in
MCA0003 width	54,5 cm / 21 1/2 in
MCA0003 weight	11,5 kg / 25,4 lb
Extended Air hose	.
8664411 length	762 cm / 25 ft
Non-woven cover sheet	.
AP-NWC-DR length	193 cm / 76 in
AP-NWC-DR width	117 cm / 46 in
